No. 22 Bicycle Company

2024 Little Wing

FRAMESET STARTING AT: $4,299

There is a raw purity that makes turning the cranks on a track bike unlike any other cycling experience. The mechanics of a bike distilled to its bare essentials. Our Little Wing frame condenses the best elements of contemporary track frames into a stunning, addictively fast package

Power transfer and tuned handling suited for both the boards and the roads were at the top of our priorities when designing the Little Wing. The frame’s stout stays, oversized head tube, large diameter top and down tubes and integrated seat mast work together to keep all contact points firmly connected and instantly responsive under hard efforts.



WHAT'S INCLUDED IN A FRAMESET?

An Aurora frameset inclues the following for the list price of $4,299.:

  • Little Wing Frame

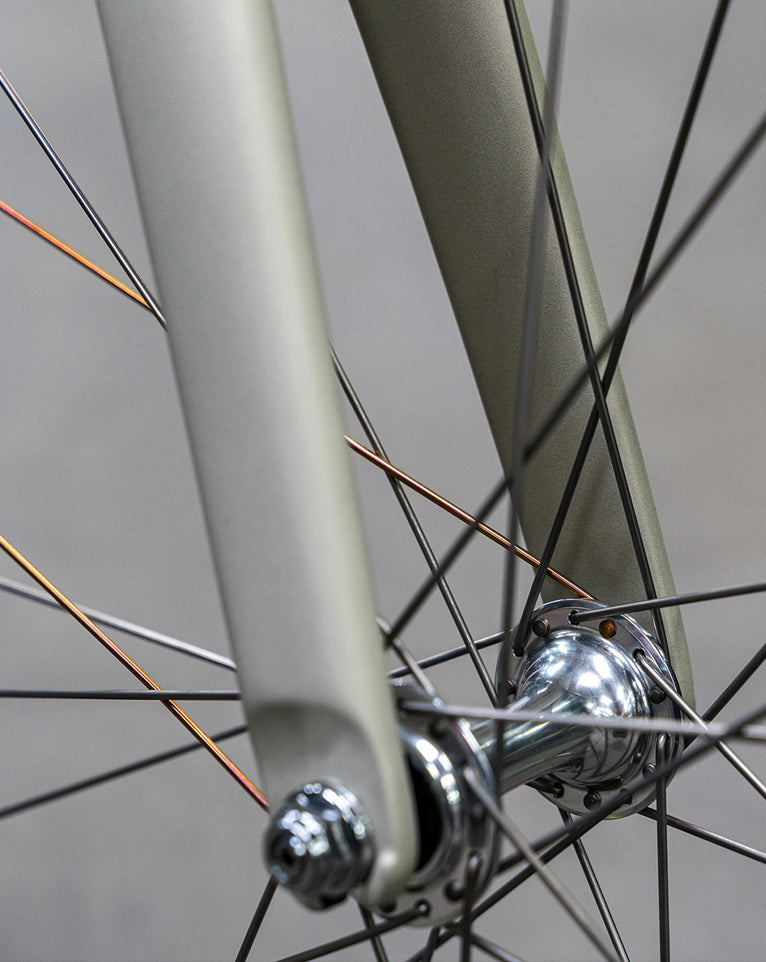

  • No. 6 Road Caliper Fork
  • No. 22 Ti headset
  • No. 22 Ti headset spacers
  • No. 22 Ti seatmast topper
  • 'Raw' finish
No. 22 Bicycle Company

2024 Little Wing

FRAMESET STARTING AT: $4,299

Geometry

Size 50cm 52cm 54cm 56cm 58cm 60cm
Effective top tube length (mm) 515 525 540 555 575 590
Seat tube, center-center (mm) 475 495 520 540 565 585
Head tube length (mm) 110 130 150 170 190 210
Seat tube angle (deg) 75.5 75 74.5 74.5 74 74
Head tube angle (deg) 73 73 73 73 73 73
Front center (mm) 569 576 587 602 617 633
Chain stay length (mm) 393 393 393 396 396 396
BB drop (mm) 58 58 58 58 58 58
Reach (mm) 383 384 389 398 408 418
Stack (mm) 504 523 542 561 580 600
Standover (700x23mm tires) 761 781 802 821 842 864



SPECIFICATIONS

 Brake Type

Rear brake is optional
Tire Clearance 28mm measured tire
Front Axle Spacing

100mm quick release
Rear Axle Spacing 120mm quick release
Fork Dimensions 45mm offset, 368mm length
Derailleur Hanger N/A

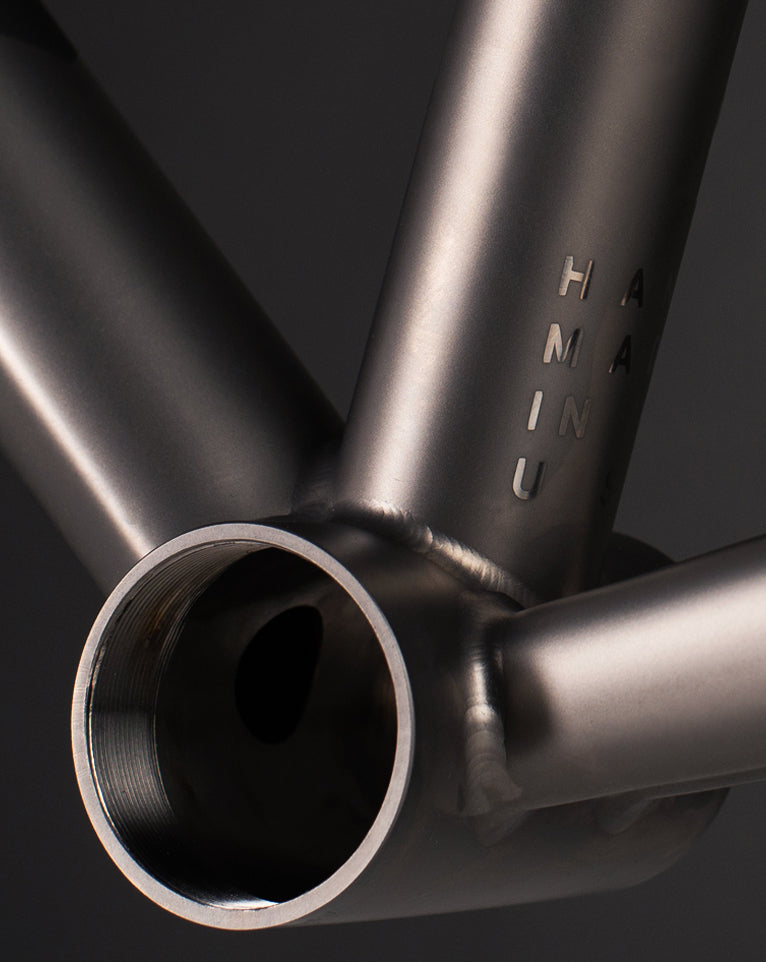

Bottom Bracket Shell  BSA threaded, 68mm wide
Front Derailleur Clamp N/A
Seatpost Size Integrated titanium seat mast c/w 3D sintered titanium seat mast topper

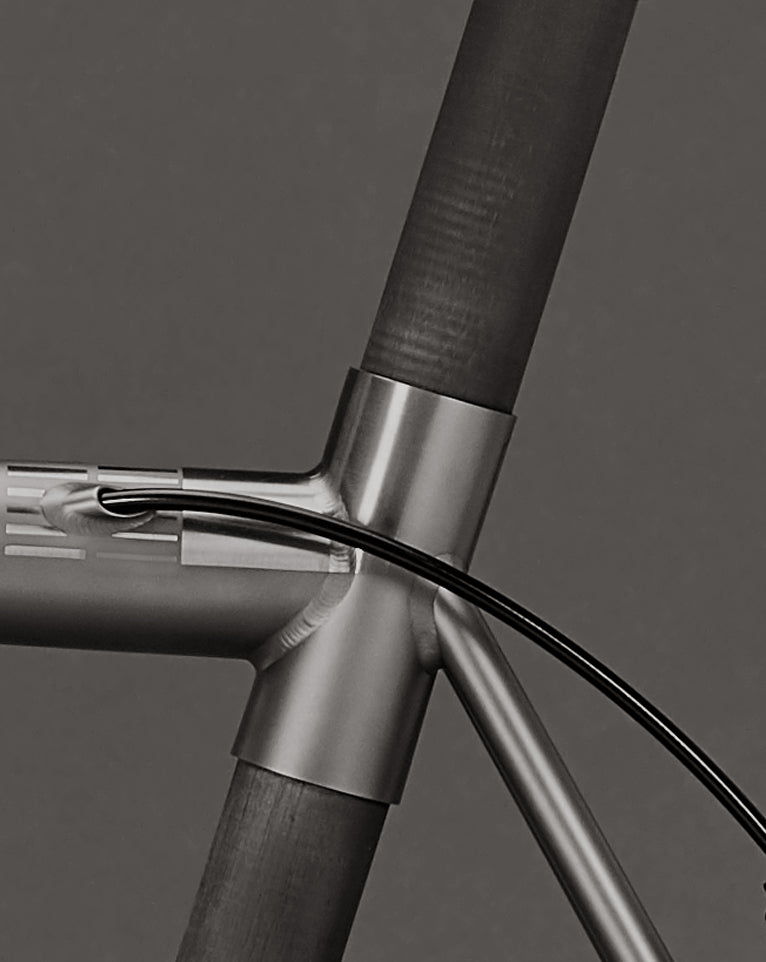

Headset Semi-internal routing | Titanium 41/47mm integrated c/w Enduro bearings

Model FAQ

SEE ALL AVAILABLE FINISH OPTIONS.

We're working on preparing a series of Little Wing finish renderings. For now, all colorways shown on the Drifter X are available on the Little Wing.

COMING SOON...

REVIEWS

MOE ADAMS: RIDING WITH A NY STATE OF MIND

“I was looking into building a titanium bike. After reading up on this a bit more, and becoming introduced to the team, it was a no-brainer to go with them for my custom bike,” he says.
READ THE FULL REVIEW

Adams has been nothing but in love with his Little Wing.

“My No. 22 bike is hands down the most comfortable bike that I’ve been on. The craftsmanship and attention to detail were significant factors for me when considering my build.”
